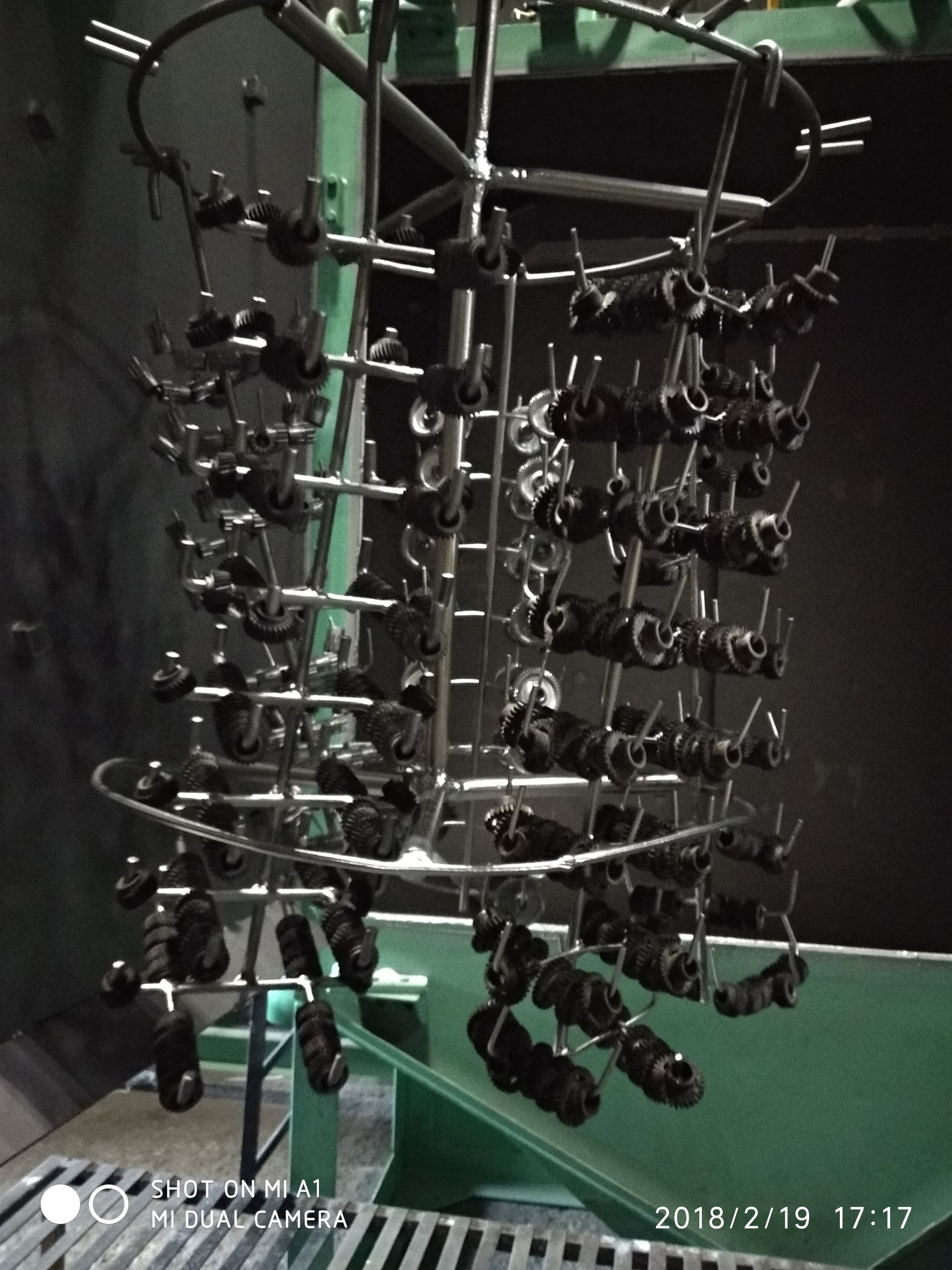

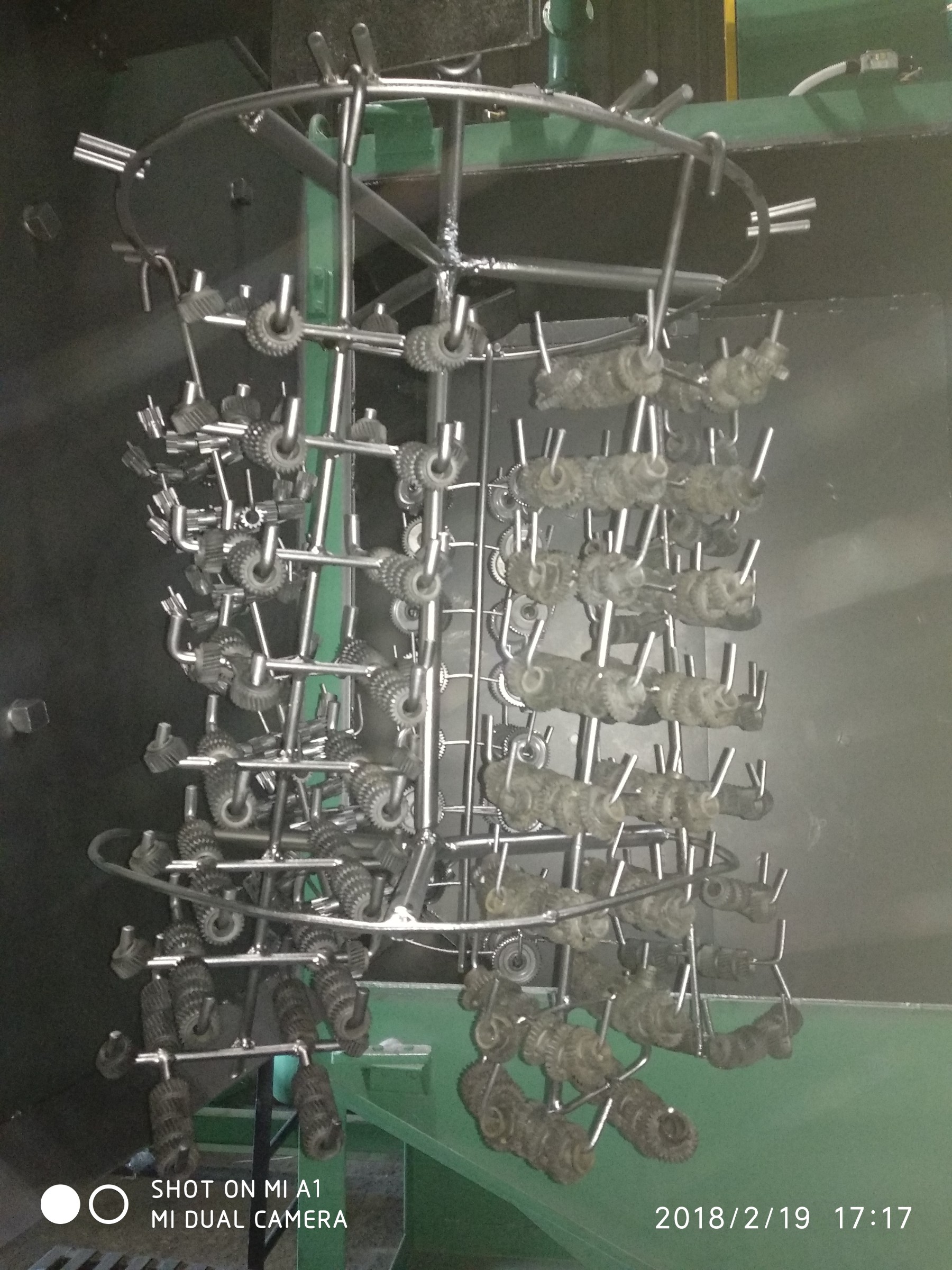

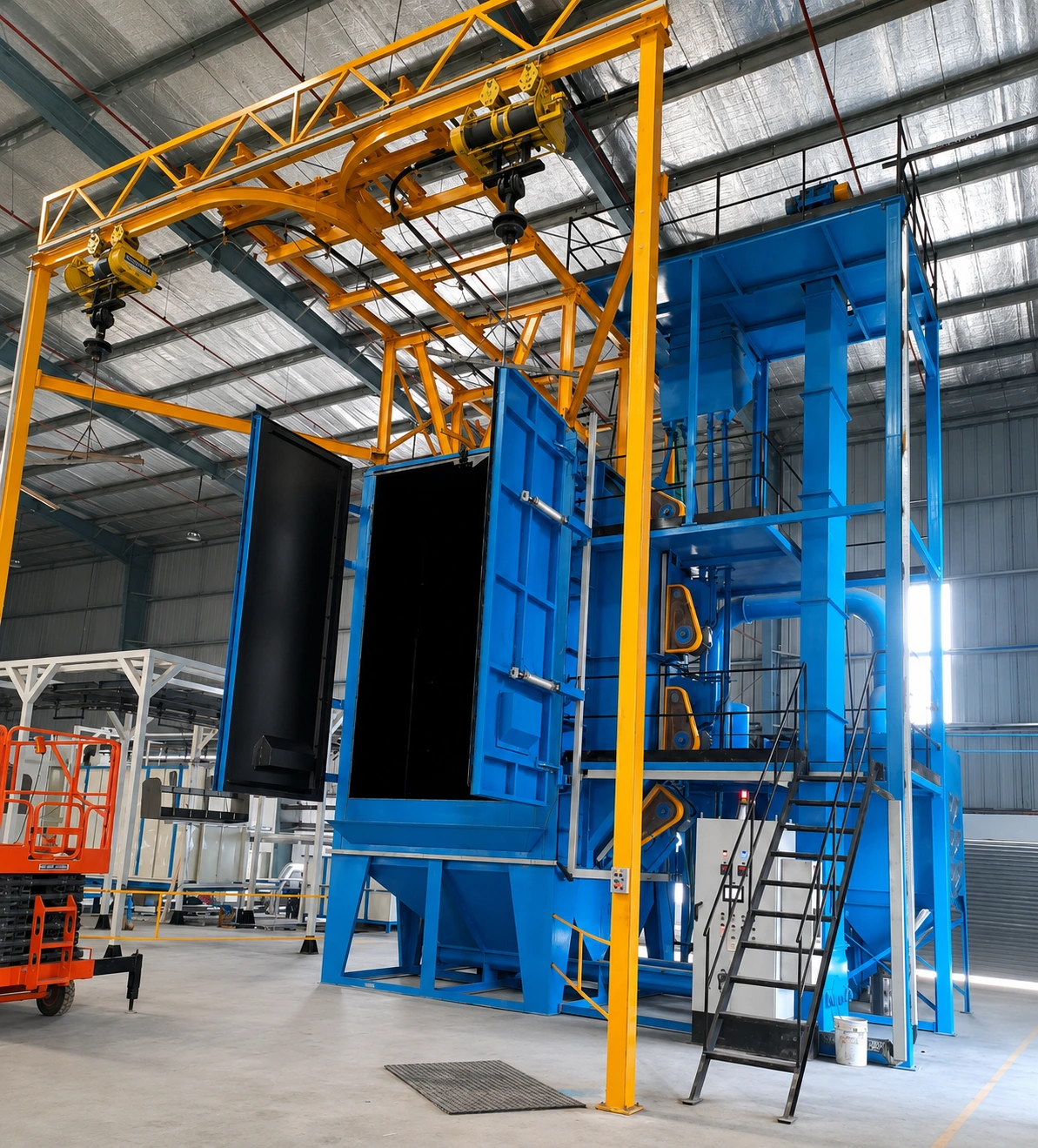

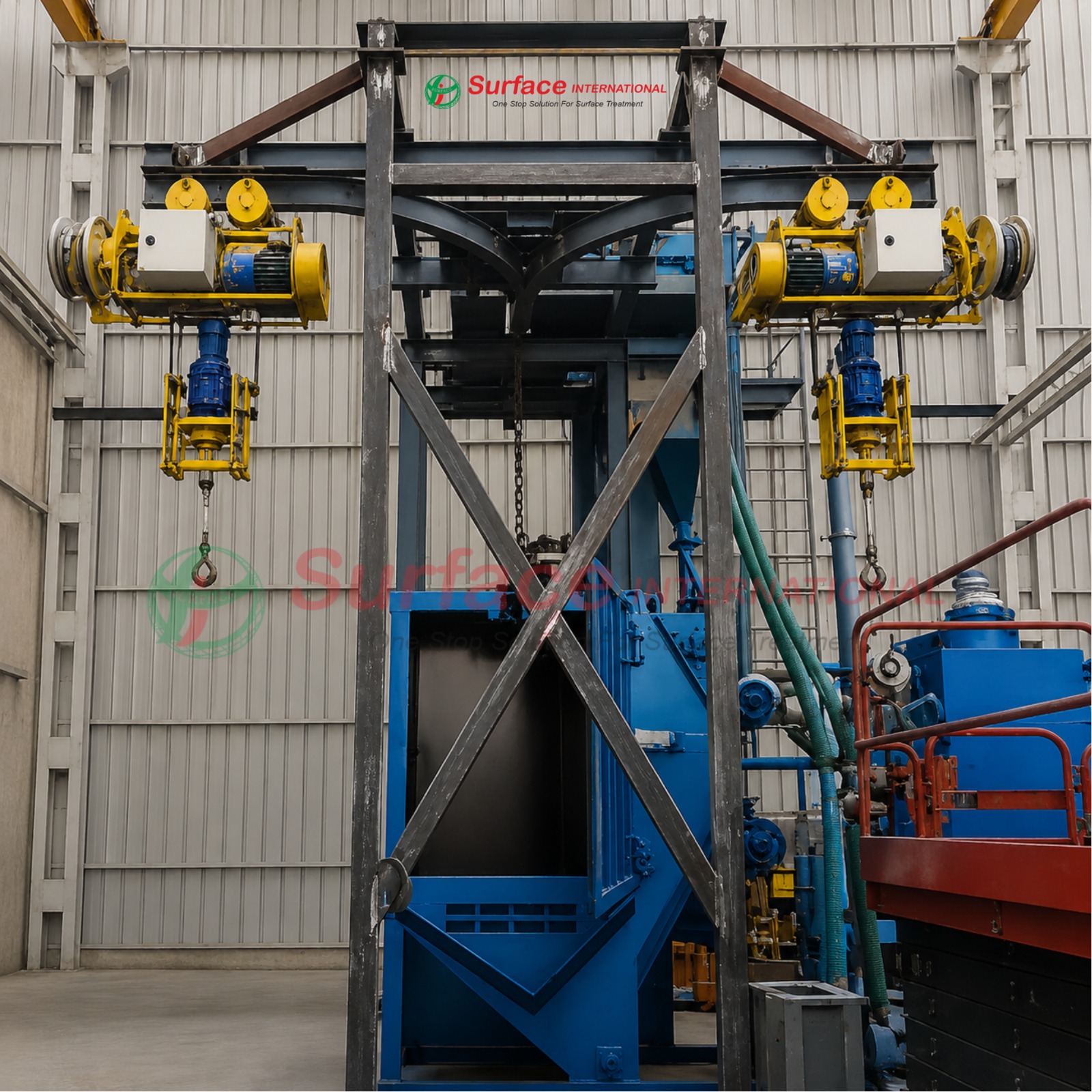

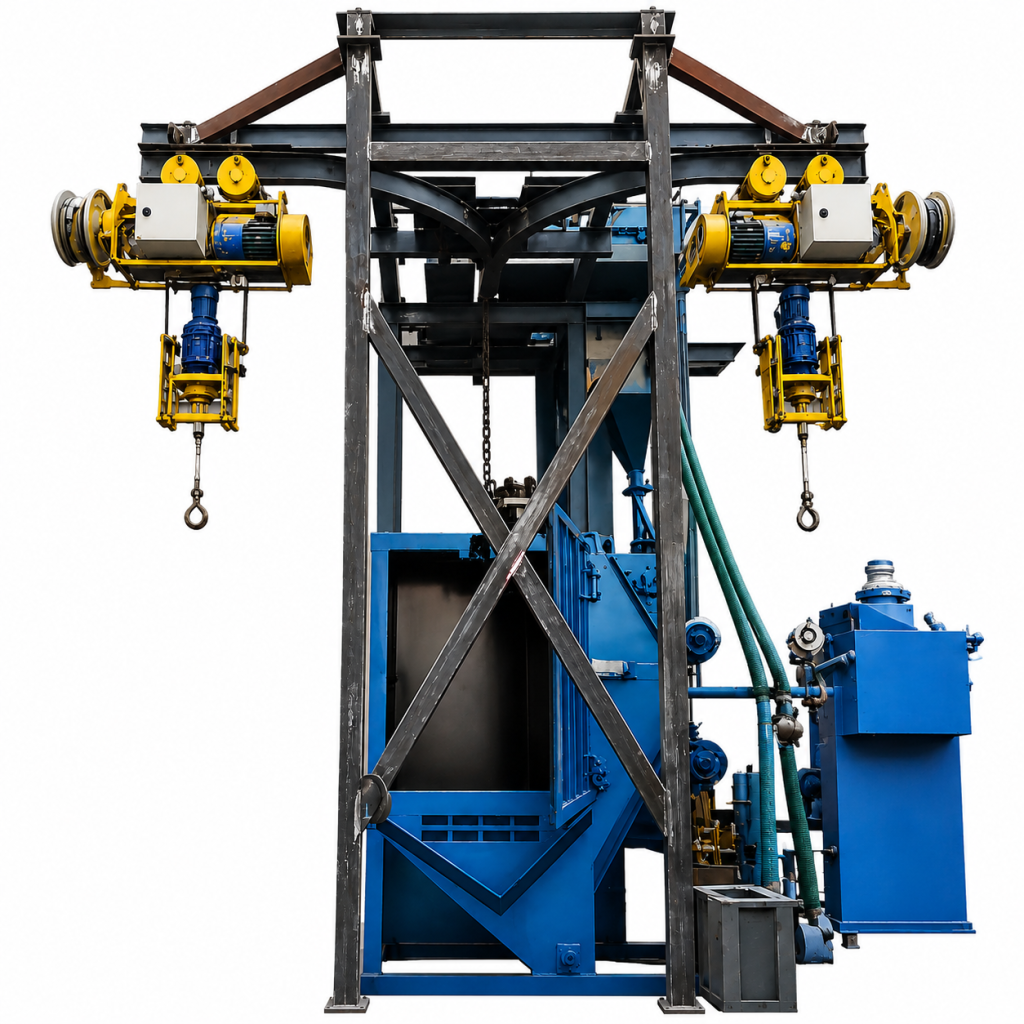

A Hanger Type Shot Blasting Machine is a specialised airless shot blasting system designed for cleaning large, heavy, and irregularly shaped metal components. In this machine, workpieces are suspended on rotating hangers and transferred into a sealed blasting chamber. High-speed steel shots or steel grit are projected onto the component surfaces to eliminate rust, mill scale, old paint, and other contaminants, leaving a clean surface ready for painting, coating, or further machining.
Types: Single Hanger, Double Hanger, Spinner Hanger, Monorail Hanger, Continuous Hanger, Y-Track Hanger.
Hanger Machine Types
SMALL PRODUCTION
Single Hanger Type
The Single Hanger Type Shot Blasting Machine features one rotating hanger that processes a single batch of components at a time. It is ideal for small and medium production units, offering reliable cleaning performance, simple operation, and cost-effective blasting.
HIGH PRODUCTIVITY
Double Hanger Type
The Double Hanger Type Shot Blasting Machine features two rotating hangers that operate alternately. While one hanger is inside the blasting chamber, the other can be loaded or unloaded, reducing downtime and improving production efficiency.
360° CLEANING
Spinner Hanger Type
The Spinner Hanger Type Shot Blasting Machine rotates the hanger continuously during blasting to provide complete surface coverage. It is suitable for intricate and irregular-shaped metal components requiring uniform cleaning.
AUTOMATED HANDLING
Monorail Hanger Type
The Monorail Hanger Type Shot Blasting Machine uses a rail-mounted transport system to move heavy components automatically into and out of the blasting chamber. It is widely used in automated production lines, heavy engineering plants, and high-capacity manufacturing facilities.
CONTINUOUS PRODUCTION
Continuous Hanger Type
The Continuous Hanger Type Shot Blasting Machine is designed for uninterrupted production. Components move continuously through the blasting chamber, making it ideal for high-volume manufacturing, faster processing, and maximum production efficiency.
MAXIMUM EFFICIENCY
Y-Track Hanger Type
The Y-Track Hanger Type Shot Blasting Machine features a Y-shaped rail system that allows loading and blasting operations simultaneously. This design improves workflow, reduces waiting time, and increases overall production efficiency in continuous manufacturing environments.
How Hanger Type Shot Blasting Machine Works
The Hanger Type Shot Blasting Machine works by suspending metal components on rotating hangers and cleaning their surfaces with high-speed steel shots or steel grit. This shot blasting process removes rust, mill scale, welding scale, old paint, dust, and other surface contaminants to prepare components for painting, coating, machining, and further manufacturing processes.
1
Loading Components on Hanger

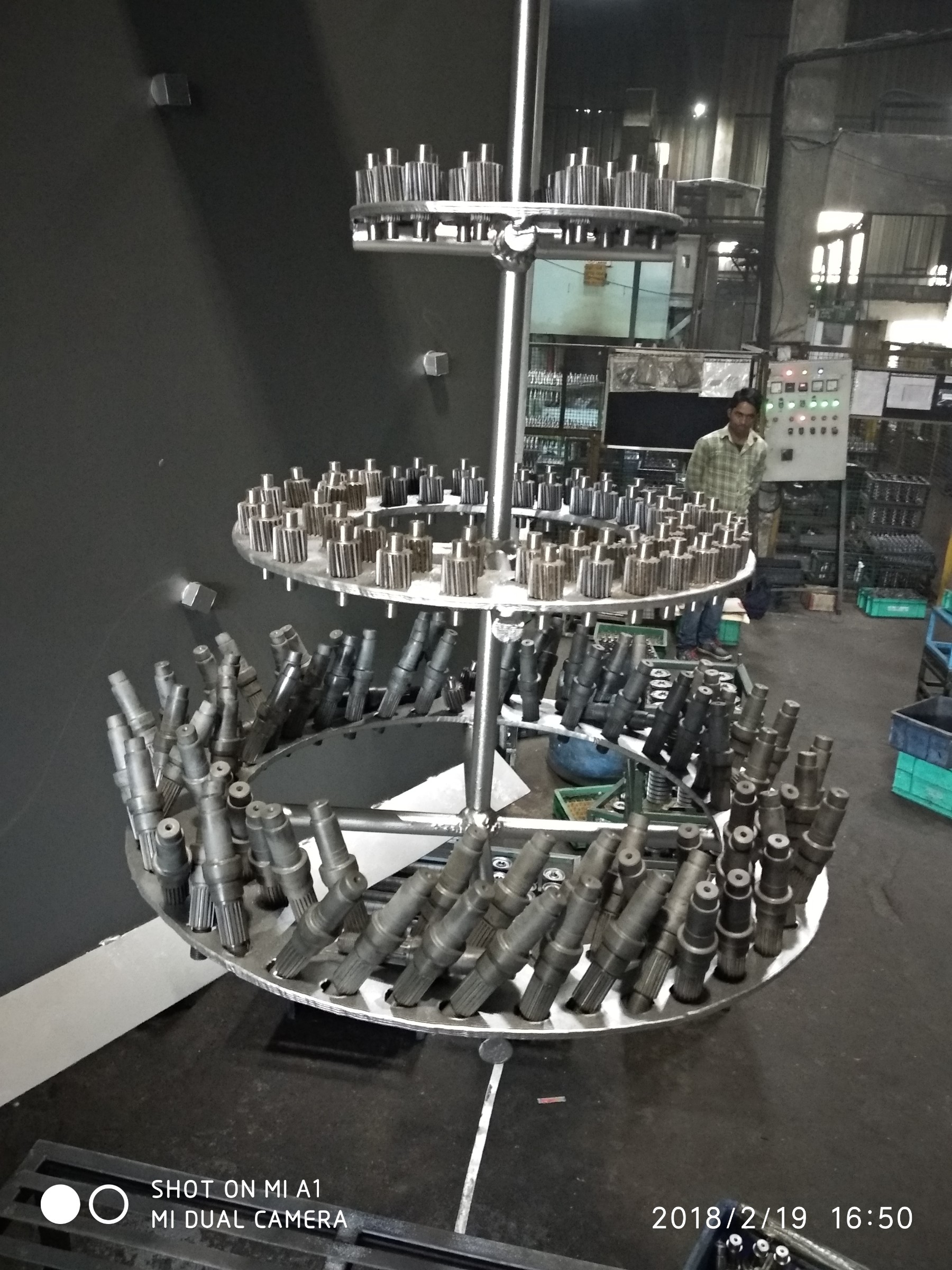

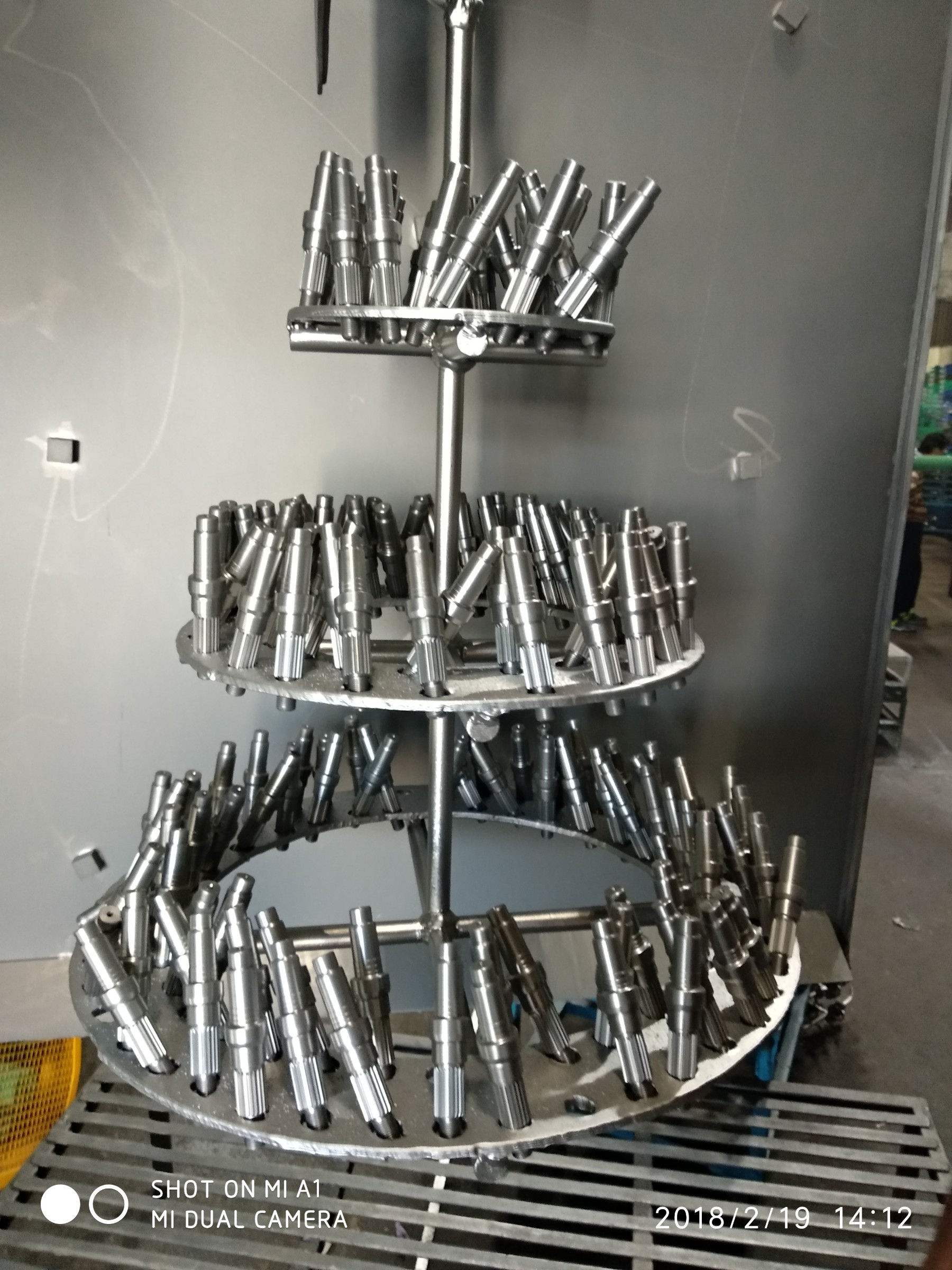

The blasting process starts with loading components onto the hanger. Heavy components are lifted using an overhead crane or hoist, while small and lightweight components can be mounted manually.
2
Component Entry into Blasting Chamber
After loading, the hanger automatically moves into the blasting chamber. The chamber door closes securely to prevent abrasive leakage and maintain safe operation.
3
Rotating Hanger Operation
The hanger rotates continuously during the blasting cycle, allowing every surface of the component to receive uniform cleaning.
4
Shot Blasting Process
Inside the chamber, the blast wheel accelerates steel shots or steel grit using centrifugal force and throws abrasive particles onto the component surface at high velocity.
5
Surface Cleaning
The impact of abrasive particles removes rust, oxidation, welding scale, old coating, dirt, and unwanted materials from the metal surface, creating a clean and prepared surface.
6
Abrasive Recovery System
After blasting, used abrasives are collected through the abrasive recovery system where they are cleaned, separated, and recycled for continuous reuse.
7
Dust Collection and Component Unloading
The dust collector removes fine dust particles generated during blasting. After completion of the cycle, the chamber opens and cleaned components are unloaded for painting, coating, machining, or inspection.
Need Hanger Type Shot Blasting Machine?
Contact our experts for the right machine selection based on component size, production capacity, and surface finishing requirements.
WhatsApp NowKey Components of Hanger Type Shot Blasting Machine
The Hanger Type Shot Blasting Machine consists of several important components that ensure efficient abrasive blasting, smooth hanger movement, uniform surface cleaning, and reliable industrial operation.
Hanger Hook
Hanger Rotation System
Hanger Trolley
Monorail Track System
Spinner Mechanism
Loading Station
Unloading Station
Hanger Drive Motor
Hanger Type Shot Blasting Machine Price in India
The Hanger Type Shot Blasting Machine Price in India depends on machine capacity, hanger size, blast wheel configuration, automation level, production requirement, component weight, and customization needs.
Surface International is a leading Hanger Type Shot Blasting Machine Manufacturer in India, offering high-quality and customized blasting solutions for automobile, foundry, forging, fabrication, heavy engineering, and other industries. The cost of a Hanger Type Shot Blasting Machine varies according to machine specifications and application requirements. We manufacture reliable industrial shot blasting machines with advanced technology, efficient operation, and long service life. For the latest Hanger Type Shot Blasting Machine Cost, contact our technical experts and get a customized quotation according to your production requirements.
